Line Striping Truck ROADMASTER 30
Product Availability: Yes / Manufacturer: VEZOS

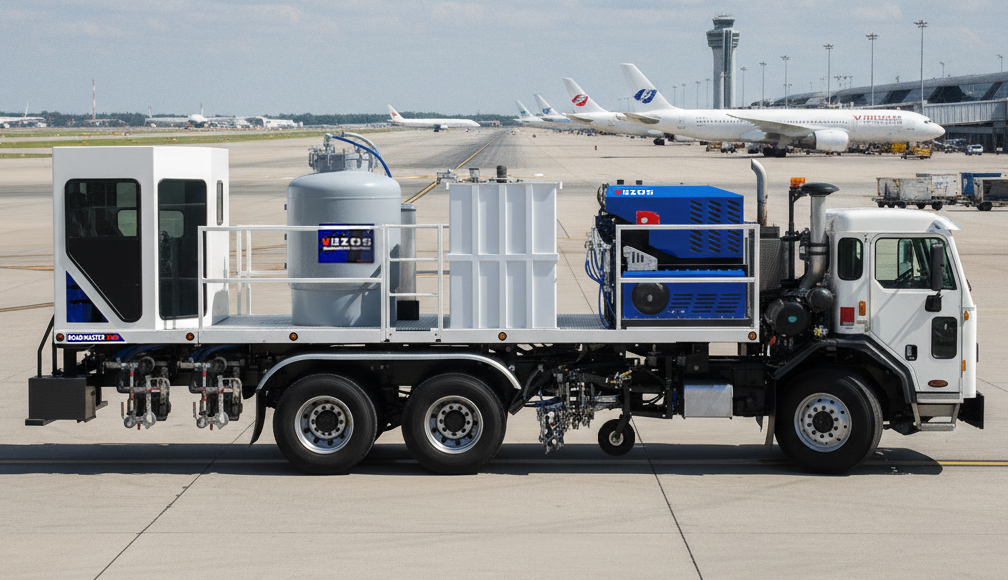

VEZOS ROADMASTER 30 line striper truck is designed for long line striping and highway road marking. Equipped with two autonomous hydraulic circuit systems; ensuring safety & usage economy, two heavy duty HYDREX 950 PowerMax piston pumps and TCS technology throughout the entire hydraulic system. Choose between our standard setup or custom build your truck depending on your needs!
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Truck Mounted Line Stripers
Get Price Online Catalog Video
ROADMASTER 30 LINE STRIPING TRUCK
STANDARD SETUP
HYDRAULIC PAINT PRESSURE SYSTEM
Module ROADMASTER 30
- 2 Autonomous & complete hydraulic circuit systems
- 2 HYDREX 950 PowerMax hydraulic fully chromed piston paint pumps
- 4 High pressure pump paint filters
- TCS system cooling technology
- 74 HP Diesel engine
PAINT STORAGE
- 4 Drum holders 55 gal each
PAINT LOADING SYSTEM
- 2 SST Hydraulic paint loading pumps 2" complete with hosing
GLASS BEAD SYSTEM
- 1 Carbon steel pressure bead tank 1500 lbs. capacity
- Vacuum bead loading system
CARRIAGES
- 2 Hydraulic gun carriages assemblieswith HD pneumatic tires & solenoid boxes
- 2 Air lifts
- 3 Paint gun actuators
Gun configuration:
- 2 Automatic airless paint guns + 2 glass bead triggers (left)
- 2 Automatic airless paint guns + 2 glass bead triggers (right)
- Manual paint | stencil kit (50ft hose, manual airless gun, reel)
REAR OPERATORS STATION
- Canopy deck setup
- 2 Rear operator suspension type seat assemblies STD
- Operators main control console
GUIDANCE SYSTEM
- 2 Road marking controllers SKIPLINE USA X series (5 channels)
ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS
- Platform base
- SST chromed HYDREX 950 PowerMax piston pump
- Additional HYDREX 950 PowerMax piston pump (3rd color)
- Paint & bead line for additional pump
- HD Monitor & Camera kit (1-2)
- Bead tank 3000 & 4000 lbs. capacity
- Vacuum bead loading system
- Hydraulic paint agitators
- Dual gun carriage
- Paint SST tank 125 gallons x 2qty |250 gallons x 2qty
- Paint totes 125 gallons x 2qty |250 gallons x 2qty
- Gun actuators
- Gallon counters
- Strobe lighting kit
- Laser guidance system HD kit
- Intercom system 2 & 3 station
- Closed box type operation cab
- Aluminum toolbox
- Fire extinguishers
- Air jets for gun carriage
- Paint heating system
- Additional gun & bead guns
- LED message board
- Digital speedometer
| MODEL | ROADMASTER 20 | ROADMASTER 30 |
| ROAD MARKING TRUCK | ROAD MARKING TRUCK | |
| Pump | HYDREX 630 (x2) | HYDREX 950 PowerMax (x2) |
| Color | 2 color | 2 color |
| Arm Bracket | HD Hydraulic Carriage (x2) | HD Hydraulic Carriage (x2) |
| Gun Setup | 4 | 4 |
| System - Operation | Automatic | Automatic |
| Includes: | ||
| Paint Gun | 4 | 4 |
| Guard | 4 | 4 |
| Tip | 4 | 4 |
| Glass Bead Gun | 4 | 4 |
| Manual Stencil Kit | included | included |
| 5 Channel Controller (x2) | included | included |
| Paint Storage 55 gal (x2) | included | - |
| Paint Storage 55 gal (x4) | - | included |
| Glass Bead Pressurized 750 lbs | included | - |
| Glass Bead Pressurized 1500 lbs | - | included (with vacuum loading system) |
| Camera - Monitor Kit | included | included |
| Operator Deck Canopy | included | included |
| 2 Rear Suspension Type Operator Seats | included | included |
| Operator Main Control Console | included | included |
