Truck Mounted Line Striping Kit ROADMASTER 5.0 - 2 Paint Pump

SKU: 77.2027520  /  Product Availability: Yes  /   Manufacturer: VEZOS

VEZOS ROADMASTER 5.0 is the ideal complex for contractors that in average take on highway marking applications. Equipped with a single or double HYDREX 230 pump, fully automatic spray & monitor system, contractors can control the entire striping procedure from the trucks cabin. The entire system is fully retractable and fits securely on the deck of your truck. VEZOS also offers custom built options, such as double arm brackets.


*Photos may contain features that are not included on the standard edition of the product.*


Back to: Truck Mounted Line Stripers

Get Price Online Catalog Video



vezos truck mounted line striping kit - road marking kit - RM 5



It all folds up onto your trucks deck, no tools - no fuss!
Everything has been carefully calculated and designed; the entire foldup procedure takes seconds by one person.

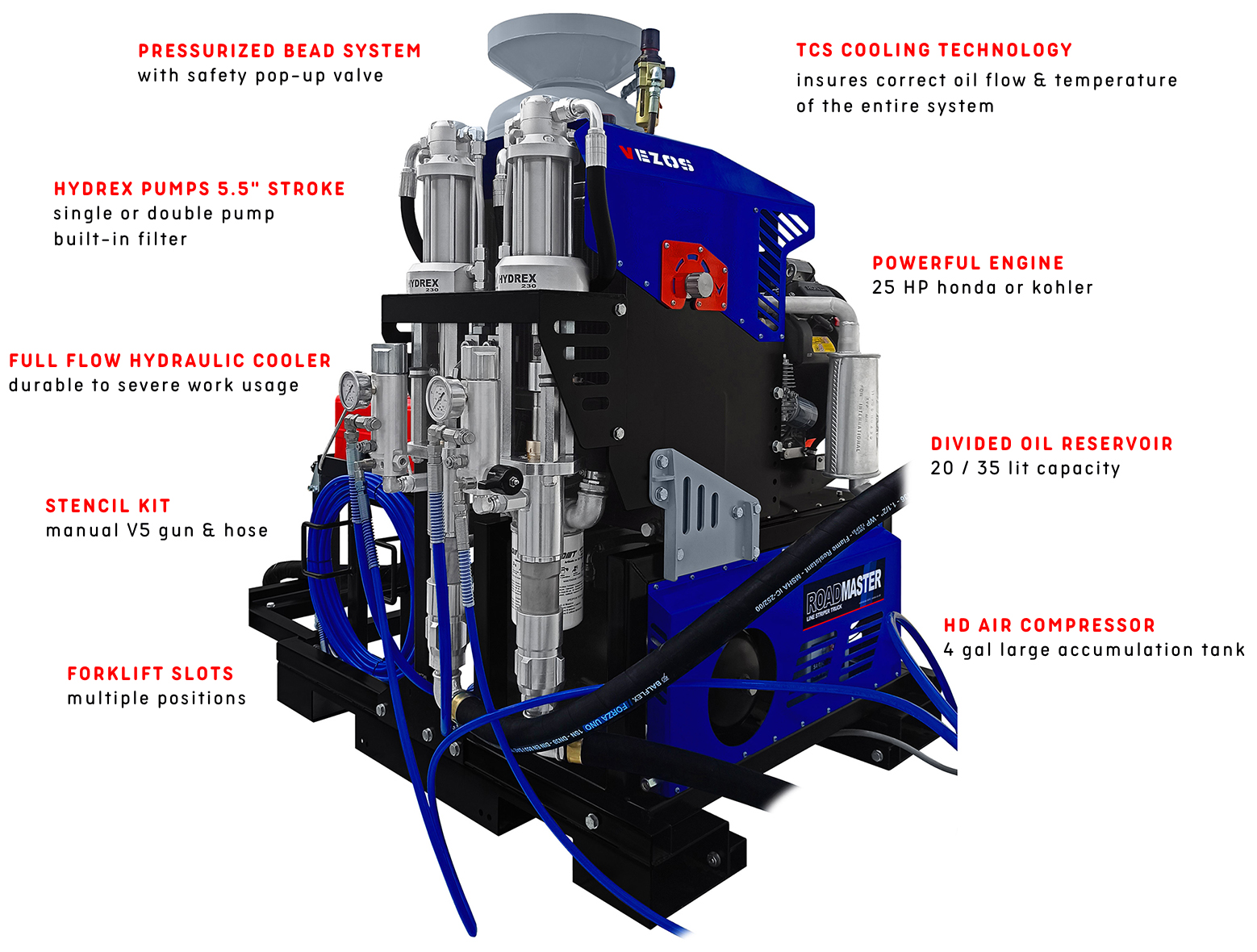

ROADMASTER 5.0, let’s take a closer look!



rmstd2



VEZOS is well-known when it comes down to hydraulic technology, therefore when designing the ROADMASTER range, we made sure to live up to our client expectations. Here under you will find a few of our "ADVANCED HYDRAULIC" features found on the ROADMASTER range.

HYDRAULIC COOLING SYSTEM
Full flow large hydraulic cooler. Unlike other designs in the market, VEZOS entire flow of hydraulic oil goes through a large HD hydraulic cooler with VEZOS TCS technology, making it possible for ROADMASTER users to work under any severe usage.

TCS Tunnel Cooling System technology
All hydraulic elements (hydraulic oil pump, oil cooler, both sections of the hydraulic tank) but also the linear motor of the HYDREX (1 or 2 pumps) are within the air cooling stream, making VEZOS innovative design the most advanced hydraulic setup available in the market.

HYDRAULIC ACCUMULATOR
Reduces pressure vibrations in the system for smoother overall operation.

HYDRAULIC RESERVOIR
The entire system works with a unique design of separate sections of hydraulic oil tanks - reservoir, that ensure the best feeding of the hydraulic pump. This design also maximizes the cooling effect of the entire hydraulic operation.

ROADMASTER 2.5
Hydraulic reservoir: Capacity 5 liters

ROADMASTER 5.0
Hydraulic reservoir:
Capacity 20 liters - 2 tank sections

ROADMASTER 10.0
Hydraulic reservoir:
Capacity 35 liters - 3 tank sections


MODEL ROADMASTER 5.0 ROADMASTER 5.0
TRUCK-MOUNTED TRUCK-MOUNTED
Material delivery (max) gpm 6.0 6.0
Material delivery (max) lpm 22.7 22.7
Working pressure (max) psi 3000 3000
Working pressure (max) bar 200 200
Type  palletized  palletized
Engine HONDA 25.0 HP HONDA 25.0 HP
Engine GX690 - Electric GX690 - Electric
Pump  HYDREX 230 (x2) HYDREX 230 (x2)
Color - Pump 2 color   2 color
Arm bracket HD HD
Gun setup 3 3
System - Operation Automatic Automatic
Dimensions (striper) in 49.2x49.2x63.8(h) 49.2x49.2x63.8(h)
Dimensions (striper) cm 125x125x162(h) 125x125x162(h)
Includes:
Paint gun  3 3
Guard  3 3
Tip  3 3
Glass bead gun 3 3
Manual stencil kit  included included
Controller 4 channel included included
Pointer  included included
Glass bead system pressurized 660 lbs included included
Glass bead system pressurized 1320 lbs - -
Camera - Monitor kit - included
Part Number 77.2027519 77.2027520









Brochures


vezos-brochures Download: VEZOS Road Marking - Line Striping Catalog
