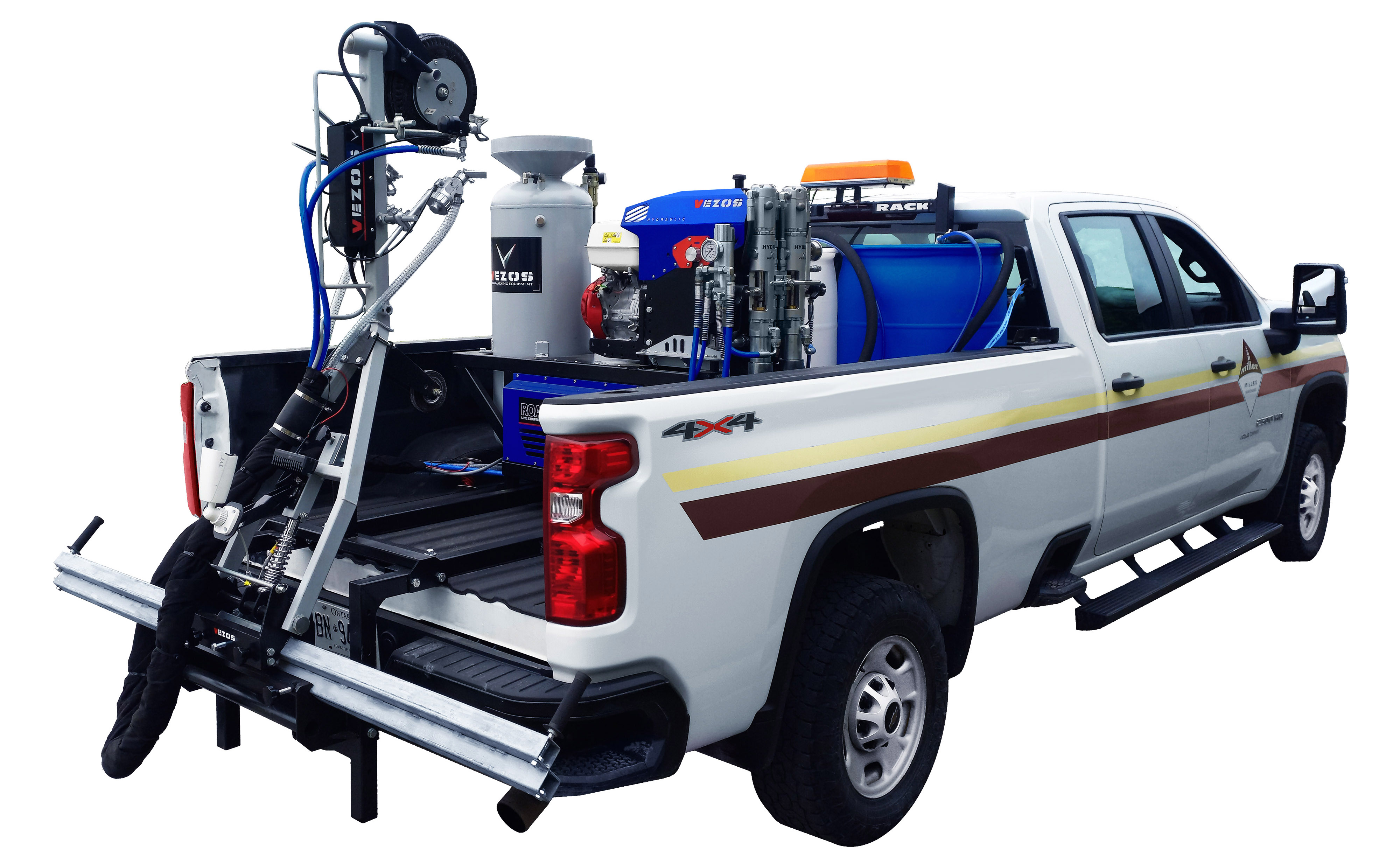

Line Striping Pickup Truck ROADMASTER 2.5 - 2 Paint Pump
SKU: 77.2017517 (KIT) / Product Availability: Yes / Manufacturer: VEZOS
VEZOS ROADMASTER 2.5 line striping pickup truck (2 PUMP) has become the newest trend in the marking industry. This line marking unit includes a retractable arm bracket and foldable chassis, automatic spray guns, pressurized bead tank, marking controller & HD camera kit.
*Photos may contain features that are not included on the standard edition of the product.*
Back to: Truck Mounted Line Stripers
Get Price Online Catalog Video
ROADMASTER 2.5 LINE STRIPING PICKUP TRUCK - 2 PAINT PUMP
STANDARD PALLETIZED SETUP
The entire system is fully retractable, with a box type frame including the hydraulic system, paint pumps, HONDA engine & air compressor.
The bracket can be placed on either side of the vehicle, simply by sliding it left or right on the rear beam.
ROADMASTER 2.5 LINE STRIPING PICKUP TRUCK
- 2 HYDREX 70 hydraulic fully chromed piston paint pumps | 2.5 gpm (x2) @ 2900 psi
- HD large hydraulic oil cooler
- TCS system cooling technology
- 9.0 HP HONDA GX270 engine
GLASS BEAD SYSTEM
- 1 steel pressure bead tank 150 kg - 330 lbs capacity
BRACKET
- Single retractable & foldable arm bracket
Gun configuration:
- Electro-pneumatic paint gun actuator
- 2 Automatic airless paint guns + 2 glass bead triggers
- Manual paint | stencil kit (15m hose, manual airless gun, reel)
GUIDANCE SYSTEM
- 1 Re-striping pointer
ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS
- Additional HYDREX 70 piston pump (3rd color)
- Paint & bead line for additional pump
- SKIPLINE controller (2 channels)
- HD Monitor & Camera kit (1-2)
- 2nd bead tank 150 kg - 330 lbs capacity
- Paint SST tank 65 gallons x 2qty
- Gallon counters
- Strobe lighting kit
- Laser guidance system HD kit
- Intercom system 2 & 3 station
- Fire extinguishers
- LED message board
| MODEL : FRAME A | ROADMASTER A2.5 | ROADMASTER A2.5 | ROADMASTER A2.5 |
| TRUCK-MOUNTED | TRUCK-MOUNTED | TRUCK-MOUNTED | |
| Material delivery (max) gpm | 2.5 | 2.5 | 2.5 |
| Material delivery (max) lpm | 9.5 | 9.5 | 9.5 |
| Working pressure (max) psi | 2900 | 2900 | 2900 |
| Working pressure (max) bar | 200 | 200 | 200 |
| Type | palletized | palletized | palletized |
| Engine | HONDA 9.0 HP | HONDA 9.0 HP | HONDA 9.0 HP |
| Engine | GX270 | GX270 ELECTRIC START | GX270 ELECTRIC START |
| Pump | HYDREX 70 | HYDREX 70 | HYDREX 70 |
| Pump size | 4.27 cu.in. | 4.27 cu.in. | 4.27 cu.in. |
| Color - Pump | 1 color | 1 color | 2 color |
| Arm bracket | STD / HD | STD / HD | STD / HD |
| Gun setup (elecro-pneumatic) | 2 | 2 | 2 |
| System - Operation | - | Automatic | Automatic |
| Dimensions (striper) in | 51x23.6x48.4(h) | 51x23.6x48.4(h) | 51x23.6x48.4(h) |
| Dimensions (striper) cm | 130x60x123(h) | 130x60x123(h) | 130x60x123(h) |
| Includes: | |||
| Paint gun | 2 | 2 | 2 |
| Guard | 2 | 2 | 2 |
| Tip | 2 | 2 | 2 |
| Glass bead gun | 2 | 2 | 2 |
| Pressurized Steel glass bead tank with pop-up valve | 330 lbs | 330 lbs | 330 lbs |
| Manual stencil kit | included | included | included |
| Controller 2 channel | - | included | included |
| Pointer | included | included | included |
| Chassis, beam & mount kit | included | included | included |
| Glass bead system pressurized 330 lbs | included | included | included |
| Camera - Monitor kit | included | included | included |
| Part Number: | 77.2017513 | 77.2017516 | 77.2017517 |
| Optional Add-ons: | |||
| Controller 5 channel | - | - | - |
| Camera & Monitor Kit | - | - | - |
| Additional paint gun kit (up to 5 total) | - | 23.9942005 | 23.9942005 |
| Additional glass bead trigger kit (up to 5 total) | - | 23.9087419 | 23.9087419 |
| Glass bead system pressurized 660 lbs | - | - | - |
